• Argent painted front bumper
• Argent grille
• Sealed beam halogen headlights
• Roof clearance lights
• Black manual fold away trailer tow mirrors
• Solar tinted glass
• Fixed interval wipers
• Black door handles

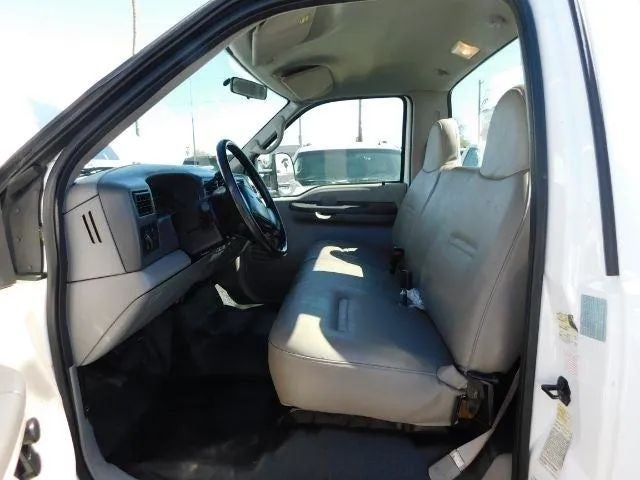

• HD vinyl bench seat w/outboard seating position integral headrests
• Black vinyl full floor covering
• Color-keyed scuff plates

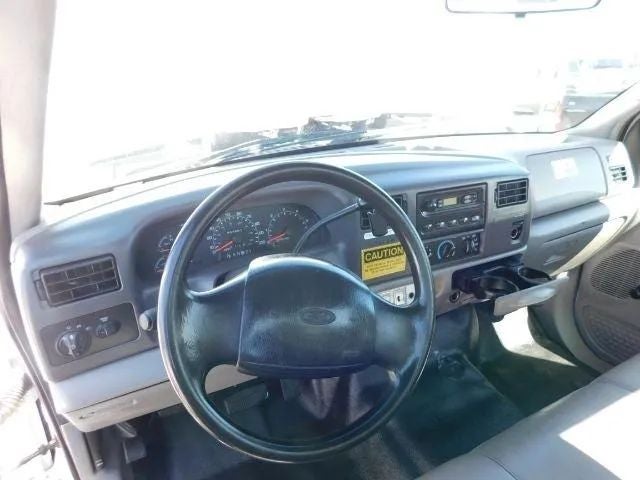

• Black vinyl steering wheel

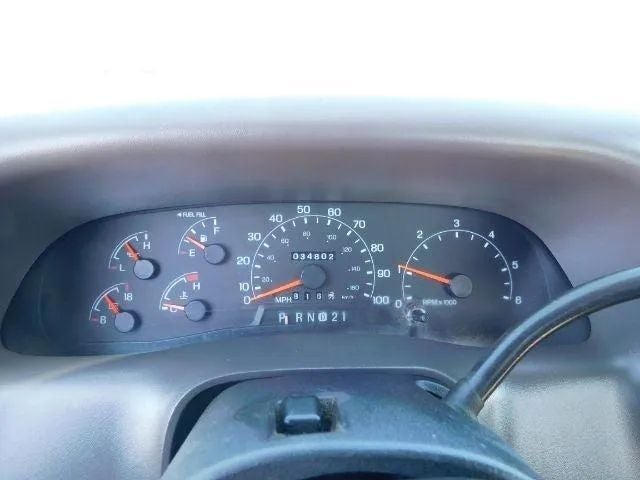

• Instrumentation-inc: tachometer, voltmeter, trip odometer, oil pressure/ coolant temp/fuel gauges, indicator lights
• Inside hood release
• (4) air registers w/positive shut-off
• Electronic AM/FM stereo-inc: digital clock, dual door-mounted speakers
• Color-keyed instrument panel w/dual cupholders
• Cigar lighter
• Auxiliary pwr point
• Front passenger assist handle
• Color-keyed molded cloth headliner
• 11.5" day/night rearview mirror

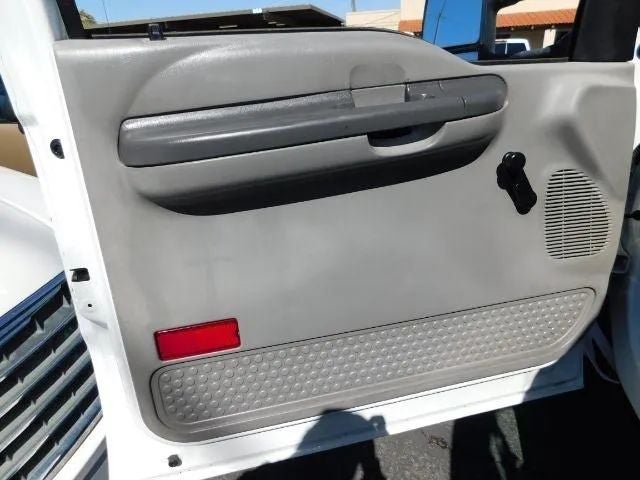

• Color-keyed door trim panel-inc: hard armrest, grab handle, reflector
• Vinyl sun visors
• Dual front color-keyed coat hooks
• Front door operated dome lamp w/time delay off
• Gray fabric back panel cover

• 4 wheel anti-lock brakes
• Driver airbag supplemental restraint system
• Color-keyed safety belts w/adjustable D-rings
• Dual-note electric horn

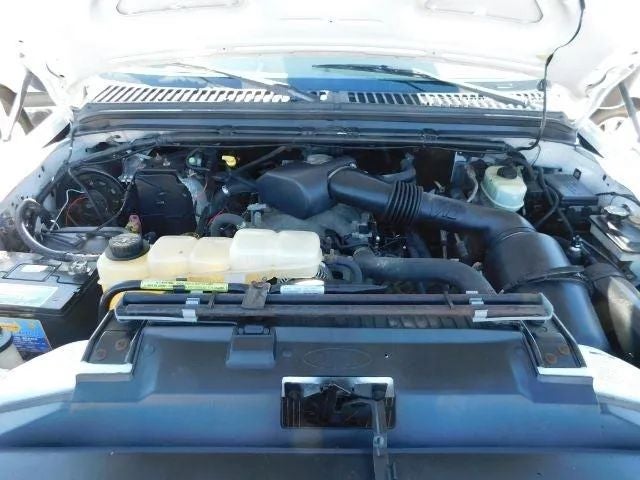

6.8L (415) SOHC SEFI V10 ENGINE

• (STD)

• ABS (4-Wheel)
• AM/FM Stereo
• Power Door Locks
• Cassette
• Tilt Wheel
• Cruise Control
• Power Windows
• Air Conditioning
• V10 6.8 Liter
• Alloy Wheels
• Power Steering
• Steel Wheels
• 2WD
• Manual 5-Spd

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Weight Information

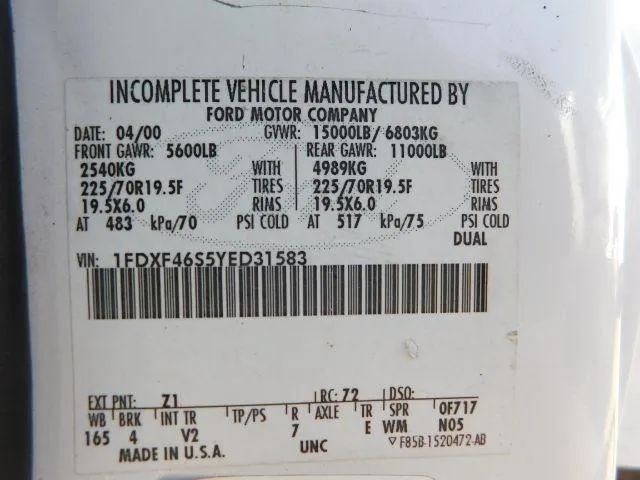

• Gross Axle Wt Rating - Front (lbs): 5400
• Gross Axle Wt Rating - Rear (lbs): 11,000
• Curb Weight - Front (lbs): 3470
• Curb Weight - Rear (lbs): 2498
• Gross Vehicle Weight Rating Cap (lbs): 15,000
• Gross Combined Wt Rating (lbs): 22,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1,000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18,800
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5400
• Spring Capacity - Rear (lbs): 11,000
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 11,000
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.55 x 0.47
• Tires
• Front Tire Order Code: T91
• Rear Tire Order Code: T91

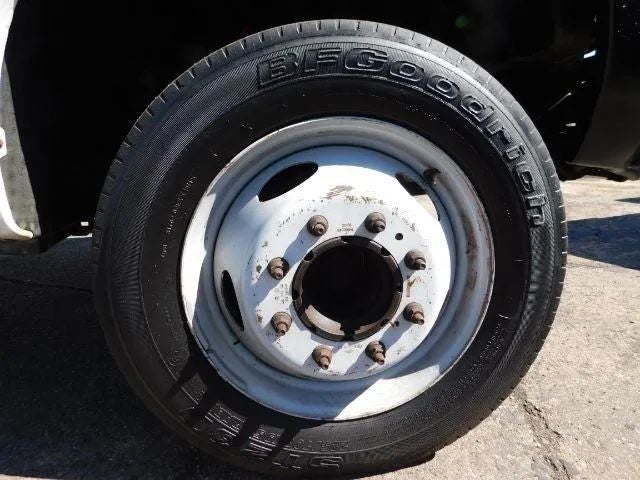

• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 3640
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 20.3
• Turning Diameter - Curb to Curb (ft): 51.98
• Turning Diameter - Wall to Wall (ft): 54.55
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-of-Axle
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 225.7
• Width, Max w/o mirrors (in): 93.6
• Height, Overall (in): 80.6
• Overhang, Front (in): 37.4
• Overhang, Rear w/o bumper (in): 47.5
• Front Bumper to Back of Cab (in): 118.2
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.5
• Ground to Top of Frame (in): 24.1
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.3
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Summary

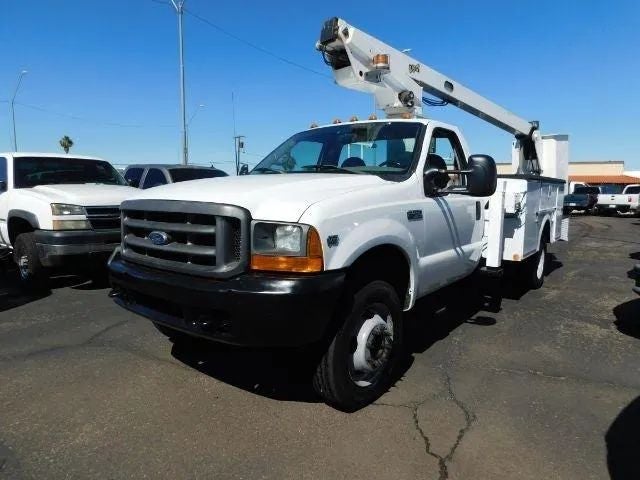

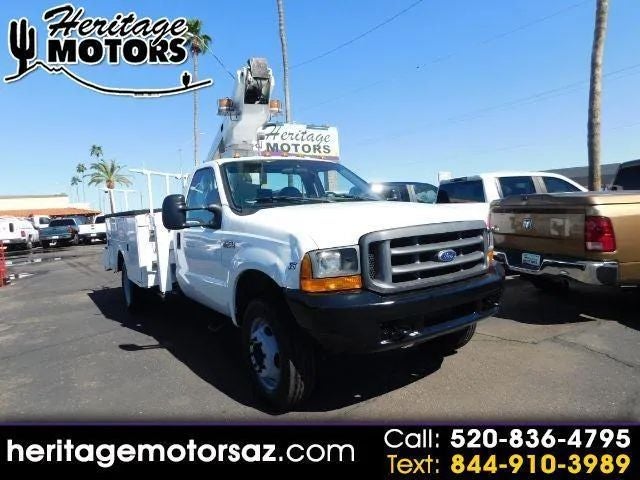

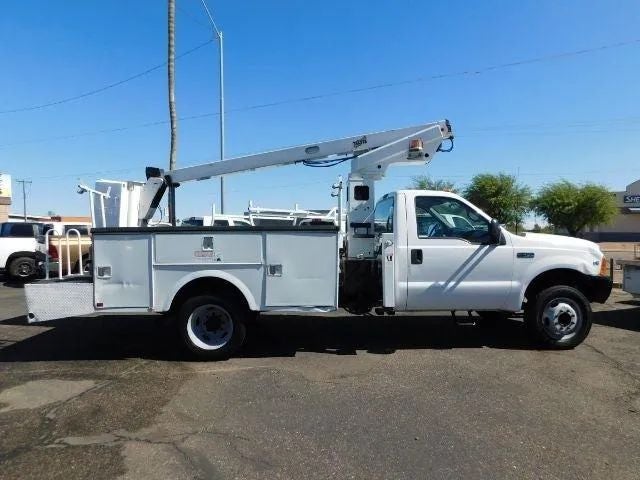

• Vehicle Name: Ford Super Duty F-450
• Body Style: Reg Cab
• Body Code: 141" WB
